Network Keyswitch
The network keyswitch is designed for enterprise organizations to be able to control remote access to a jump station (remotely accessible PC) by way of a physical interrupt switch controlled by key. Turning the key on and off immediately grants or denies network access.
Features
- Standard 1U rackmount design
- Supports both 120 and 240 VAC
- Dry contact output reflects state of key (on or off)
- Black powder coated aluminum
- Ultra bright LEDs for clear visibility of status
Use Cases
Casinos, Financial Institutions, High Security Facilities - store key in key asset cabinet so that operators must use their access card to obtain key in order to grant network access to the jump station for remote work.
Product Photos

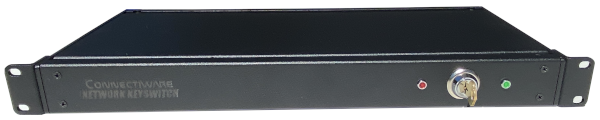

Front of Network Keyswitch - stainless keys, with rack mounting ears attached.
Rear of network keyswitch showing network ports, dry contact output and power switch.
Specifications
Power: 120/240 VAC (only 120V US power cord provided. )
Dry Contact Rating: Up to 12VDC @ 10A or 24VAC @ 5A (resistive load)
Dimensions: 203.44 mm W x 431.8 mm L x 44.45 mm H (8"W X 17"L X 1-3/4" H)
Weight: 1.58kg (3.51 lbs)
